Acer CF100 CFast 2.0 512GB CFast Card Review
Introduction

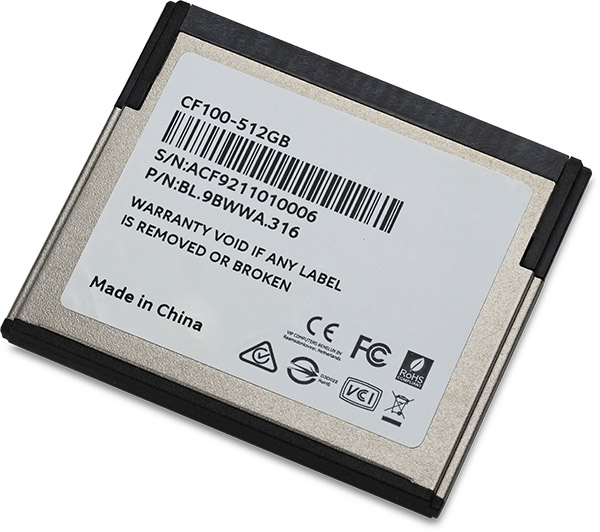

Acer is a well-known computer manufacturer but a relatively new name in memory cards. Acer memory is made under license by BIWIN, a flash storage producer. The CF100 memory card is their CFast 2.0 storage product, offering up to 550MB/s read and 450MB/s write speeds according to the product specifications. The cards use MLC NAND memory. Acer CF100 cards have a 5-year warranty. The card tested is made in China. Available capacities include 64, 128, 256, 512GB and 1TB. The 512GB card was tested in this review. The card has UPC 887184012988 and the product number is BL.9BWWA.316, model CF100-512GB.
Performance
The CF100 card was benchmarked using several USB 3.0 card readers as well as a SATA to CFast 2.0 adapter. The USB 3.0 readers provide a typical workflow scenario, while the SATA adapter uses the card's native interface to simulate maximum throughput used a SATA connected device.
In testing the card reached 551MB/s read speed, which meets the quoted 550MB/s write speed. Write speed in all readers and tests fell well short of the 450MB/s read speed. The highest write speed was 388.7MB/s using a SATA to CFast adapter.
Card: Acer CF100 CFast 2.0 512GB
Benchmark: CrystalDiskMark 8.0.4 x64
Program settings: 1000 MB, 5 passes, random test data
Operating system: Windows 11 Pro
Motherboard: Gigabyte Z690 UD AX DDR4
Processor: Intel Core i5 @ 3.30GHz
RAM: 32GB DDR4 3200
| Acer CF100 CFast 2.0 512GB Card Reader Benchmarks | Seq. Read 1000MB Q=8 MB/s | Seq. Read 1000MB Q=1 MB/s | Seq. Write 1000MB Q=8 MB/s | Seq. Write 1000MB Q=1 MB/s | Rand. Read 4KB Q=32 MB/s | Rand. Read 4KB Q=1 MB/s | Rand. Write 4KB Q=32 MB/s | Rand. Write 4KB Q=1 MB/s |
|---|---|---|---|---|---|---|---|---|
| CFast to SATA Card Adapter | 550.742 | 505.290 | 384.793 | 388.739 | 197.819 | 22.080 | 310.622 | 125.717 |
| Transcend RDF2 CFast 2.0 Card Reader | 463.894 | 417.961 | 388.242 | 384.117 | 153.024 | 17.583 | 165.595 | 40.367 |
| Delkin Multi-Card CFast SD UHS-II microSD Reader | 436.012 | 425.084 | 386.474 | 386.974 | 18.855 | 17.517 | 40.476 | 40.376 |
| Professional Workflow CR2 CFast 2.0 USB 3.0/Thunderbolt Reader | 427.479 | 408.361 | 383.991 | 384.377 | 18.861 | 17.495 | 40.434 | 40.365 |
The following benmarks were performed using the SATA to CFast 2.0 adapter. During testing the card reached maximum temperature of 66°C.

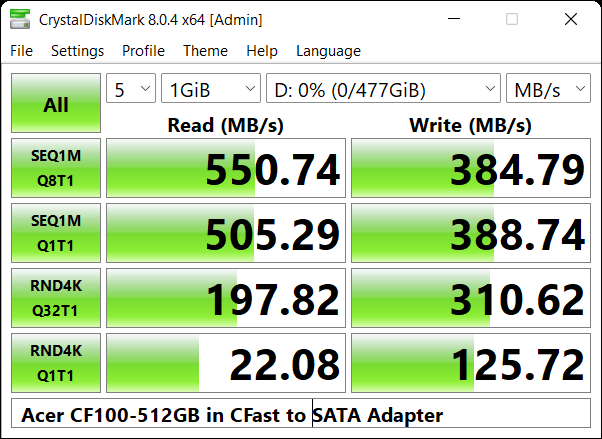

CrystalDiskMark provides a benchmark using random (incompressible) data.

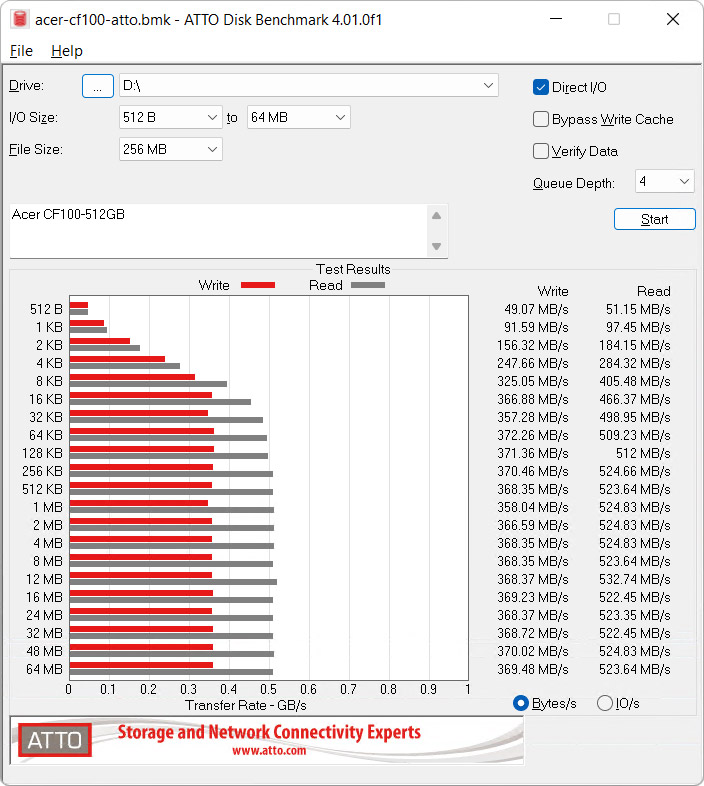

ATTO is widely used to benchmark system disk performance using different test file sizes and compressible data.

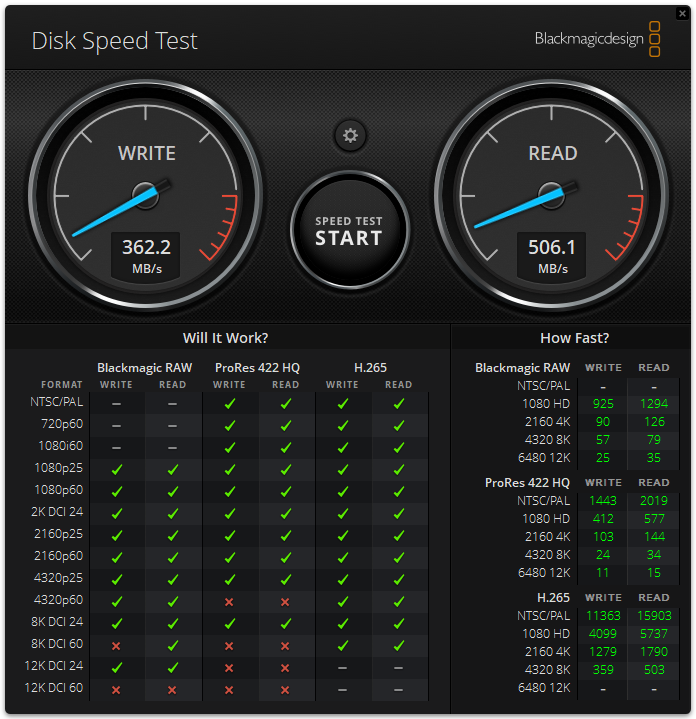

Blackmagic provides a Disk Speed Test utility to evaluate storage media for different codecs and resolutions.

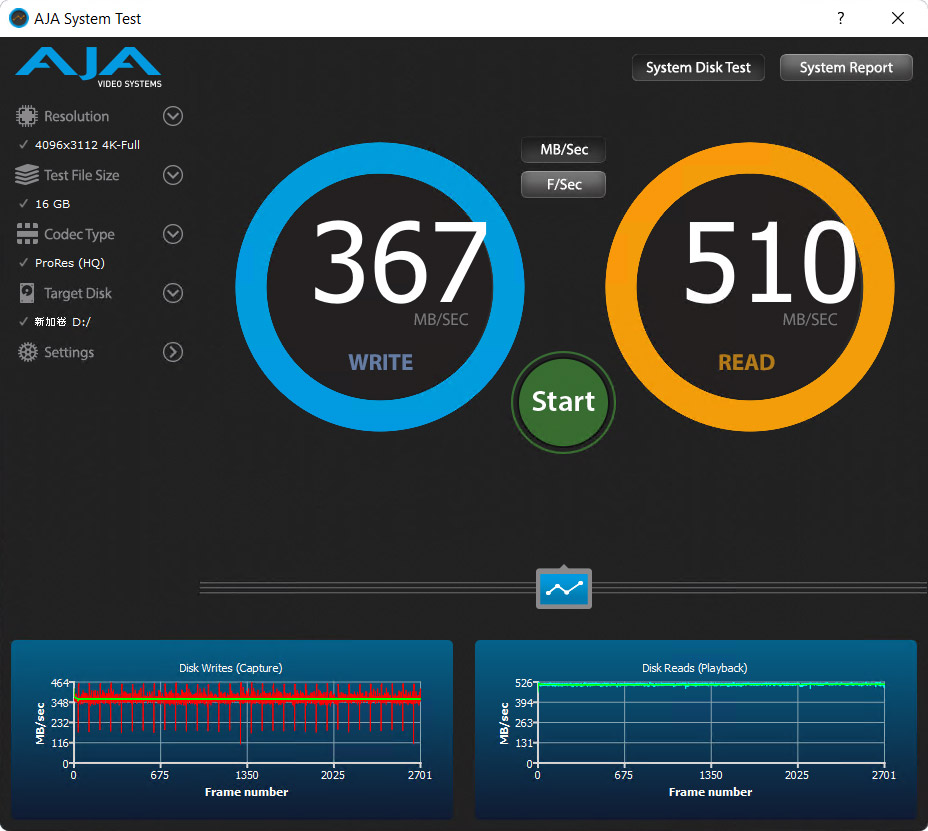

AJA Video Systems Disk Test provides the ability to use different resolutions and codecs to simulate reading and writing a video file.
The Acer CF100 CFast 2.0 512GB card will be tested using for write speed in cameras. When available, the results will be added to this page.

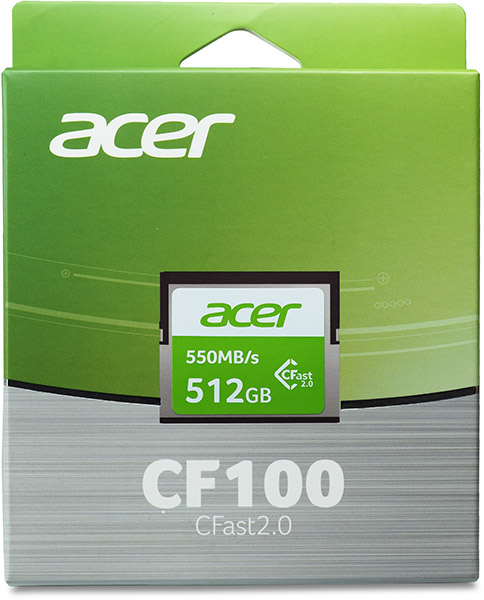

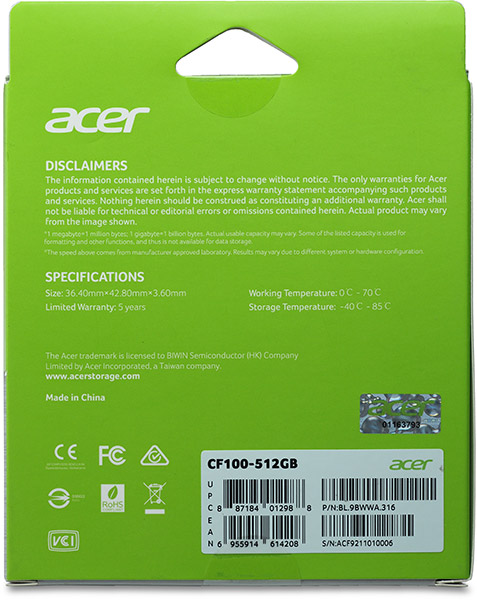

Packaging
Available sizes and prices
Compare prices on the Acer CF100 card. The lowest prices are highlighted in the table below. Prices are updated daily.
| Card | Size GB | Lowest $ / GB | Prices | ||
|---|---|---|---|---|---|
| Amazon | B&H Photo | Adorama | |||
| Acer CF100 CFast 2.0 64GB | 64 | $0.70 | $44.99 | ||
| Acer CF100 CFast 2.0 128GB | 128 | $0.59 | $74.99 | ||
| Acer CF100 CFast 2.0 256GB | 256 | $0.57 | $144.99 | ||
| Acer CF100 CFast 2.0 512GB | 512 | N/A | |||
