Lexar Professional 633x SD cards were introduced in early 2015. Initially the cards had a maximum 45MB/s write speed and UHS Speed Class 3 (U3) for nearly all capacities. U3 rated cards sustain at least 30MB/s for recording HD and 4K video. By mid-2016 the 32, 64 and 128GB capacity cards were updated with a lower U1 speed rating and the maximum write speed quoted by Lexar was downgraded to 20MB/s. The U1 rating only guarantees 10MB/s continuous recording speed. The 256 and 512GB capacity cards still retain the U3 speed rating and 45MB/s write speed according to Lexar. All 633x cards are marked with a 95MB/s speed, which is the read speed only.

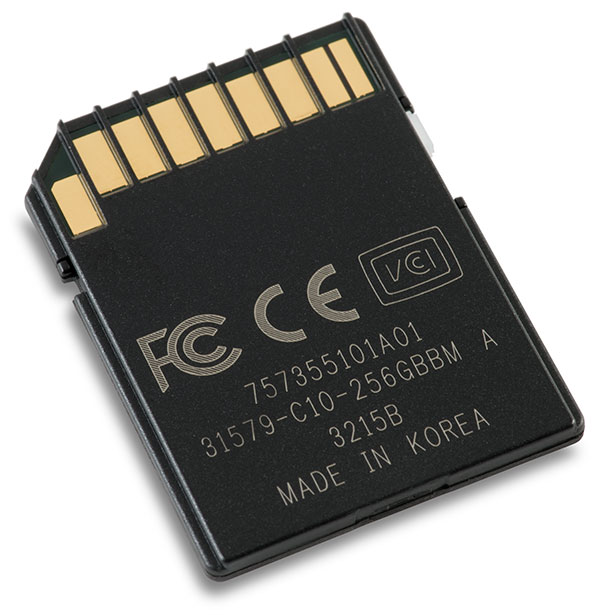

The current 633x cards with U3 rating are only offered in 256 and 512GB capacities (Lower capacity cards have U1 speed rating). The card tested for this review is the 256GB capacity SDXC card (LSD256CBNL633). The card is made in Korea.
The 256GB card was benchmarked in several card readers and the highest sequential read speed measured 96.7 MB/s. The highest sequential write speed was 69.3 MB/s, well above the 45 MB/s speed quoted by Lexar.
Card: Lexar Professional 633x U3 256GB
Benchmark: CrystalDiskMark 3.0.3 x64
Program settings: 1000 MB, 5 passes, random test data
Operating system: Windows 10 Pro
Motherboard: Gigabyte GA-Z77X-UD3H
Processor: Intel Core i7-3770K @ 4.40GHz
RAM: 32GB DDR3 1600
Lexar Professional 633x U3 256GB Card Reader Benchmarks | Seq. Read 1000MB MB/s | Seq. Write 1000MB MB/s | Rand. Read 512KB MB/s | Rand. Write 512KB MB/s | Rand. Read 4KB MB/s QD1 | Rand. Read 4KB IOPS QD1 | Rand. Write 4KB MB/s QD1 | Rand. Write 4KB IOPS QD1 | Rand. Read 4KB MB/s QD32 | Rand. Read 4KB IOPS QD32 | Rand. Write 4KB MB/s QD32 | Rand. Write 4KB IOPS QD32 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
SanDisk Extreme Pro SD UHS-II Reader/Writer | 97.842 | 68.985 | 85.264 | 30.700 | 4.111 | 1003.6 | 0.798 | 194.8 | 5.197 | 1268.8 | 0.779 | 190.2 |
Delkin Black Rugged Card Reader | 97.760 | 67.450 | 84.716 | 8.120 | 3.929 | 959.2 | 0.821 | 200.4 | 4.908 | 1198.2 | 0.764 | 186.6 |
Sony S1 High Speed UHS-II Reader/Writer | 97.724 | 69.040 | 85.307 | 13.111 | 4.183 | 1021.3 | 0.787 | 192.2 | 5.051 | 1233.3 | 0.796 | 194.3 |
Lexar Professional Workflow SR2 UHS-II | 96.741 | 68.913 | 88.451 | 29.013 | 5.600 | 1367.1 | 0.711 | 173.6 | 7.334 | 1790.4 | 0.882 | 215.3 |
Lexar LRWM04U-7000 UHS-II Reader | 96.741 | 68.629 | 87.942 | 29.477 | 5.446 | 1329.6 | 0.709 | 173.1 | 7.162 | 1748.5 | 0.874 | 213.3 |
Hama USB 3.0 UHS-II SD Card Reader | 96.741 | 67.602 | 87.754 | 31.704 | 5.147 | 1256.5 | 0.716 | 174.8 | 7.012 | 1712.0 | 0.890 | 217.2 |
Hama USB Type-C 3.1 UHS-II SD Card Reader | 96.572 | 67.772 | 86.975 | 21.758 | 5.389 | 1315.6 | 0.711 | 173.6 | 7.144 | 1744.1 | 0.870 | 212.5 |
Delkin Dual Slot SD UHS-II and CF Card Reader | 95.507 | 68.886 | 88.686 | 24.657 | 5.511 | 1345.4 | 0.711 | 173.6 | 7.340 | 1792.1 | 0.882 | 215.2 |
Kingston MobileLite G4 UHS-II | 95.464 | 69.035 | 88.509 | 34.683 | 5.570 | 1359.8 | 0.788 | 192.4 | 7.191 | 1755.7 | 0.888 | 216.8 |
DriverGenius USB 3.1(G1) / 3.0 UHS-II SD Card Reader | 95.230 | 67.441 | 86.132 | 46.581 | 4.830 | 1179.2 | 0.668 | 163.1 | 6.519 | 1591.5 | 0.834 | 203.6 |
Delkin Multi-Card CFast SD UHS-II microSD Reader | 95.213 | 68.615 | 87.553 | 33.945 | 5.341 | 1304.1 | 0.714 | 174.3 | 7.287 | 1779.1 | 0.874 | 213.5 |
SanDisk Extreme Pro UHS-II SD Reader/Writer | 95.161 | 68.858 | 88.553 | 39.050 | 5.505 | 1344.1 | 0.877 | 214.2 | 7.217 | 1761.8 | 0.873 | 213.0 |
Lexar Professional Dual Slot UHS-II Card Reader | 95.135 | 68.836 | 88.188 | 37.867 | 5.594 | 1365.7 | 0.696 | 169.8 | 7.309 | 1784.5 | 0.855 | 208.7 |
Transcend Multi-Card Reader RDF9 | 95.092 | 68.660 | 88.363 | 29.189 | 5.543 | 1353.2 | 0.707 | 172.7 | 7.166 | 1749.5 | 0.870 | 212.3 |
Kingston FCR-HS4 Card Reader | 95.040 | 69.003 | 88.029 | 30.477 | 5.577 | 1361.6 | 0.709 | 173.1 | 7.159 | 1747.9 | 0.876 | 214.0 |
Delkin Travel Reader | 94.911 | 68.746 | 85.977 | 27.831 | 5.476 | 1336.8 | 0.714 | 174.3 | 7.163 | 1748.9 | 0.875 | 213.5 |
SanDisk ImageMate Pro Multi-Card Reader/Writer | 94.902 | 67.988 | 83.165 | 25.534 | 3.989 | 973.8 | 0.768 | 187.4 | 5.032 | 1228.5 | 0.775 | 189.3 |
Transcend Multi-Card Reader RDF8 Black | 94.714 | 69.081 | 87.134 | 43.481 | 5.078 | 1239.7 | 0.828 | 202.2 | 6.690 | 1633.3 | 0.821 | 200.3 |
Delkin Universal Memory Card Reader | 94.500 | 69.282 | 86.947 | 25.194 | 5.098 | 1244.6 | 0.685 | 167.3 | 6.740 | 1645.4 | 0.859 | 209.7 |
Transcend SD Card Reader RDF5 Black | 94.475 | 68.606 | 85.963 | 38.618 | 4.252 | 1038.1 | 0.792 | 193.5 | 5.099 | 1244.9 | 0.778 | 189.8 |
Sony MRW-E90 XQD 2.0 / SD UHS-II Card Reader | 92.606 | 67.909 | 83.872 | 24.731 | 5.066 | 1236.8 | 0.681 | 166.2 | 6.798 | 1659.7 | 0.834 | 203.7 |
SanDisk ImageMate All-In-One USB 3.0 | 92.296 | 68.231 | 78.174 | 33.885 | 3.627 | 885.6 | 0.771 | 188.2 | 4.152 | 1013.6 | 0.741 | 181.0 |
SanDisk Extreme Pro UHS-II USB-C Reader SDDR-409 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.0 | 0.000 | 0.0 | 0.000 | 0.0 | 0.000 | 0.0 |
In camera tests, the Lexar 633x U3 256GB SDXC card averaged 52.7 MB/s write speed during continuous shooting in the Nikon D5600. More camera tests are being conducted and the results are added table below when available.
Lexar Professional 633x U3 256GB Tested in Camera | Write Speed (MB/s) |
---|---|
Canon EOS M5 | 60.8 |
Sony A9 | 59.0 |
Canon Rebel T7i | 58.7 |
Canon 77D | 58.5 |
Nikon D7500 | 55.6 |
Canon EOS R | 53.1 |
Nikon D5600 | 52.7 |
Fuji X-T3 | 52.5 |
Olympus E-M1 II | 40.3 |
Panasonic GH5 | 37.9 |
Nikon Coolpix P1000 | 32.5 |
Cameras tested with this card: Canon EOS R, Canon 77D, Canon EOS M5, Canon Rebel T7i, Fuji X-T3, Nikon D7500, Nikon D5600, Nikon Coolpix P1000, Olympus E-M1 II, Panasonic GH5, Sony A9
The following table contains information encoded in the SD card.
Lexar Professional 633x U3 256GB SD — Internal Card Information | |
---|---|
Serial number (PSN) | 2470105321 |
Product Name (PNM) | |
Product Revision | 0.2 |
Manufacturer ID (MID) | 0x000028 |
OEM ID (OID) | BE |
Manufacture Date (MDT) | 08/2015 |
Total capacity | 256,421,920,768 bytes |
